ACO StormBrixx®
Smart, Scalable Stormwater Storage—Built for Every Site
ACO StormBrixx® is a unique, American-made, patented plastic geocellular stormwater management system. The system is designed for surface water detention, retention, infiltration and reuse. Its versatility allows it to be used in applications across all construction environments as a standalone solution or as part of a Sustainable Drainage System.

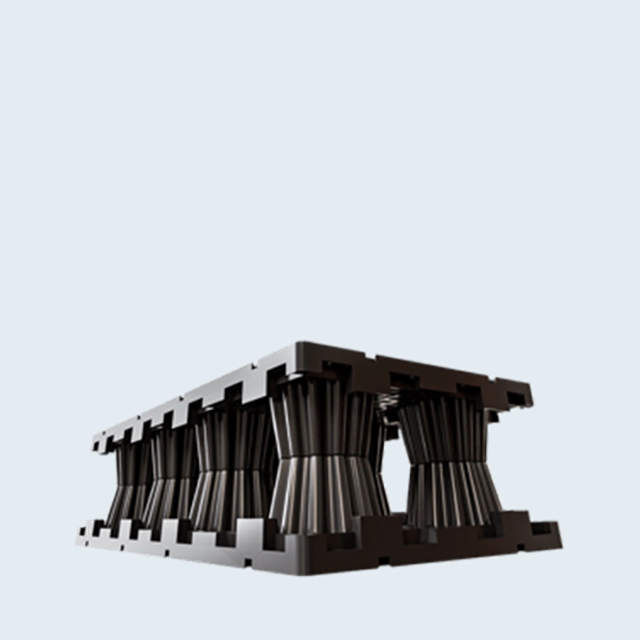

ACO StormBrixx® 300
- Low-Profile Geocellular Stormwater Tank System
- Available in SD and HD module types

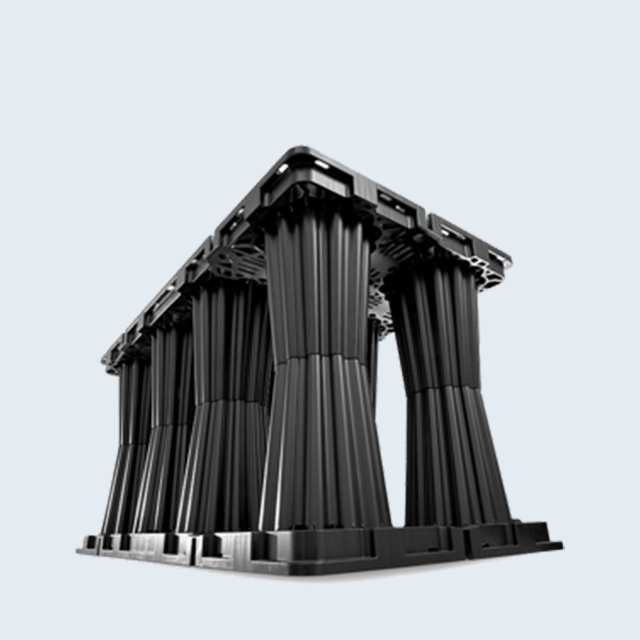

ACO StormBrixx® 600HD
- Heavy-Duty Geocellular Stormwater Tank System
- Rated up to AASHTO HS-25 loading conditions

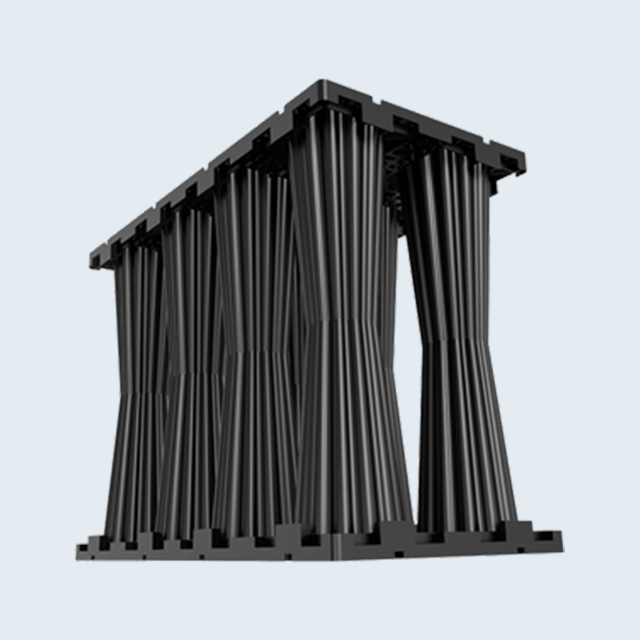

ACO StormBrixx® 900SD
- Standard-Duty Geocellular Stormwater Tank System
- Rated up to AASHTO HS-20 loading conditions
Features and Benefits
-
Manufactured in the USA: Supports the local economy while avoiding tariffs and “stuck in customs” delays.
-

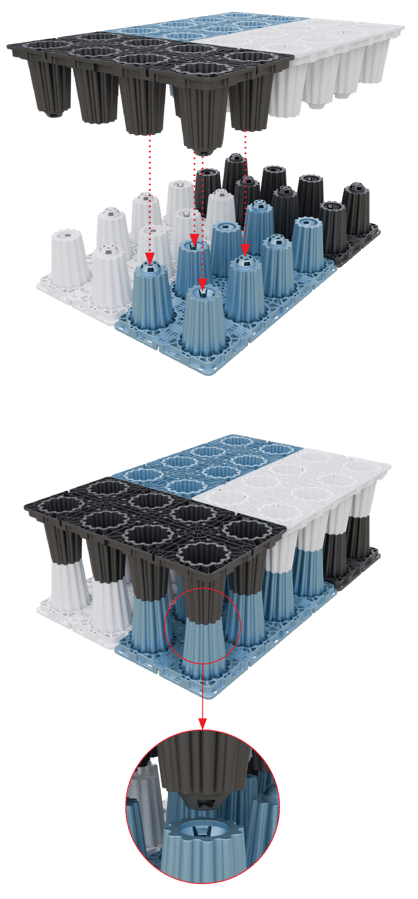

Modular Brick-Bonding Design: Flexible tank configurations to satisfy installation and site requirements. Provides a strong, robust tank installation that resists differential movement during and after construction.
-
Optimized Inspection and Maintenance: The column structure allows for inspection and maintenance throughout the tank. Multiple access options allow for design flexibility and long-term ease of maintenance.
-
Sediment Filtration: The StormBrixx Sediment Filtration Tunnel targets “first-flush” flow, removing more than 80% of Total Suspended Solids.
-
LEED Eligible: Ideal for sustainable and low-impact development (LID) projects.
-
Heavy-Duty Options: Supports up to H/HS-20 or H/HS-25 live vehicle loads based upon the module type.
-
Multiple Height Configurations: 7.5" to 108" tall tanks, alterable in 6" increments for maximized stormwater detention and retention with a minimized tank footprint.
-
Time & Cost Savings: Time & Cost Savings: zero pre-assembly needed, saving hundreds of install hours vs geocellular systems.
Spotlight Projects
%20008.jpg?width=2000&height=1500&name=StormBrixx%20900%20SD%20-%20ASU%20ISTB%2012%20(Tempe%2c%20AZ)%20008.jpg "StormBrixx 900 SD - ASU ISTB 12 (Tempe, AZ) 008")

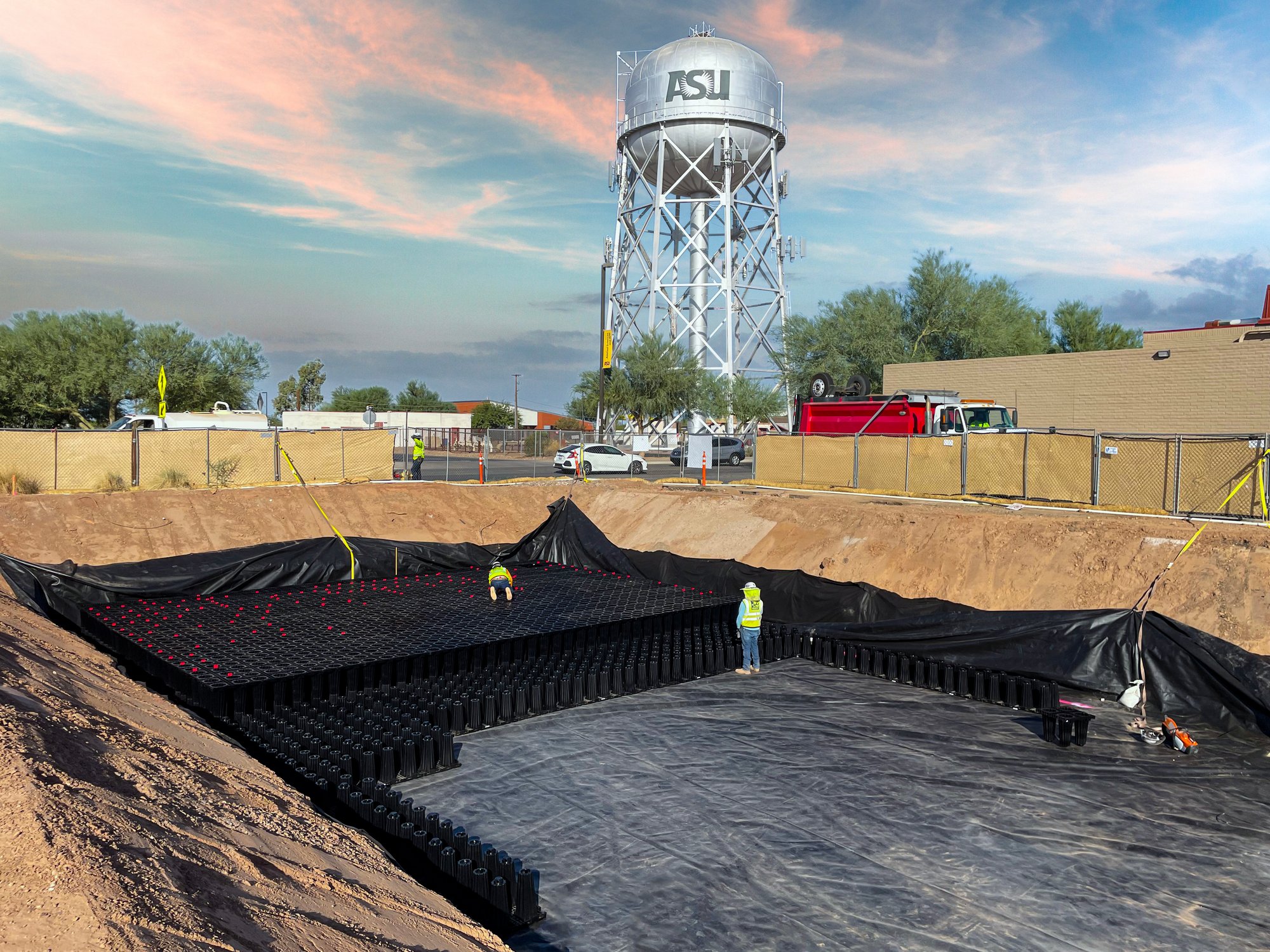

ASU ISTB 12
Tempe, AZ
StormBrixx 900 SD
.jpg?width=2000&height=1500&name=StormBrixx%20900%20SD%20-%20Viviano%20Clubhouse%20(Saratoga%20Springs%2c%20UT).jpg "StormBrixx 900 SD - Viviano Clubhouse (Saratoga Springs, UT)")

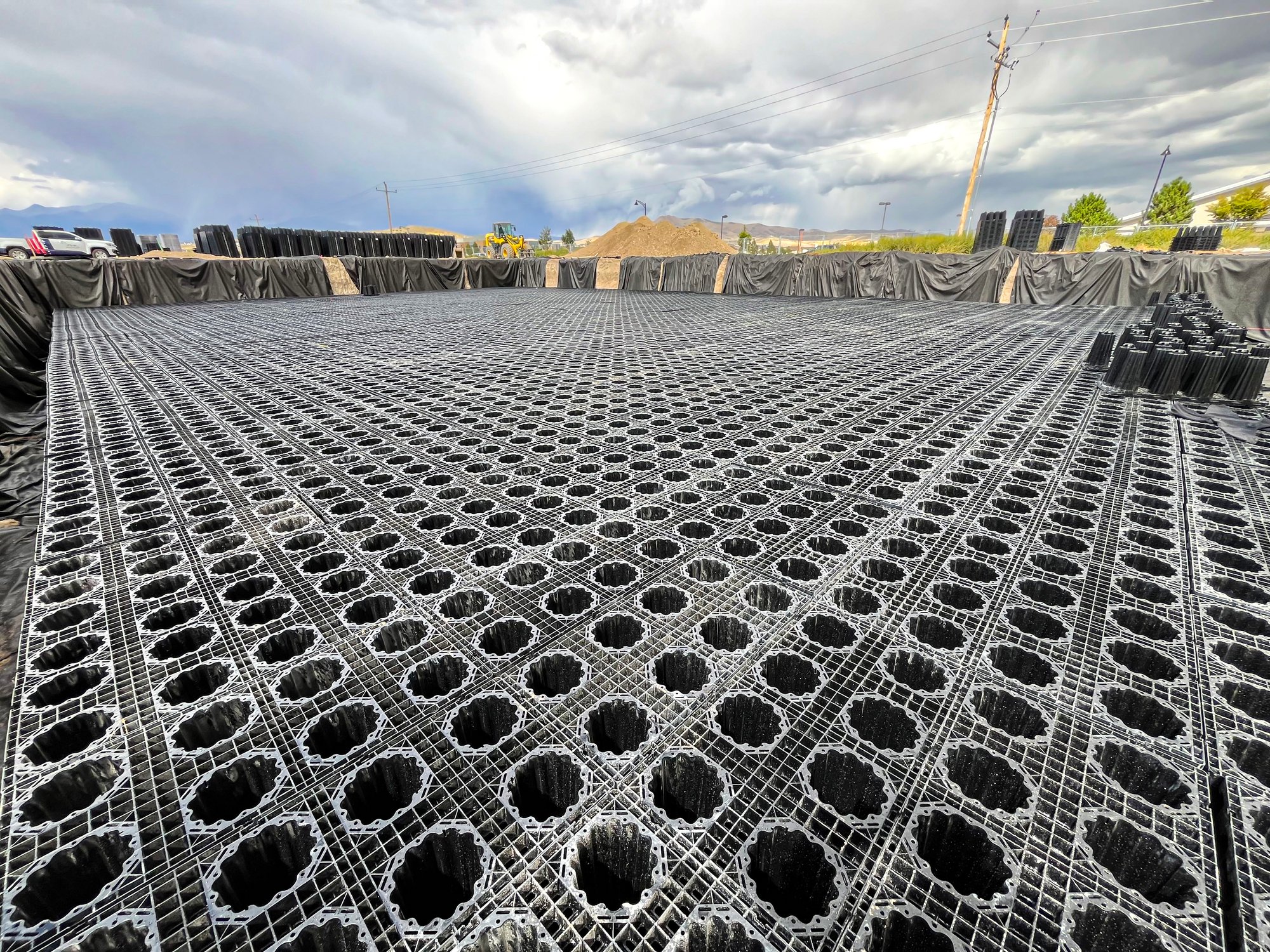

Viviano Clubhouse
Saratoga Springs, UT
StormBrixx 900 SD
.jpg?width=2000&height=1500&name=StormBrixx%20900%20SD%20-%20Mygrant%20Glass%20(Flagstaff%2c%20AZ).jpg "StormBrixx 900 SD - Mygrant Glass (Flagstaff, AZ)")

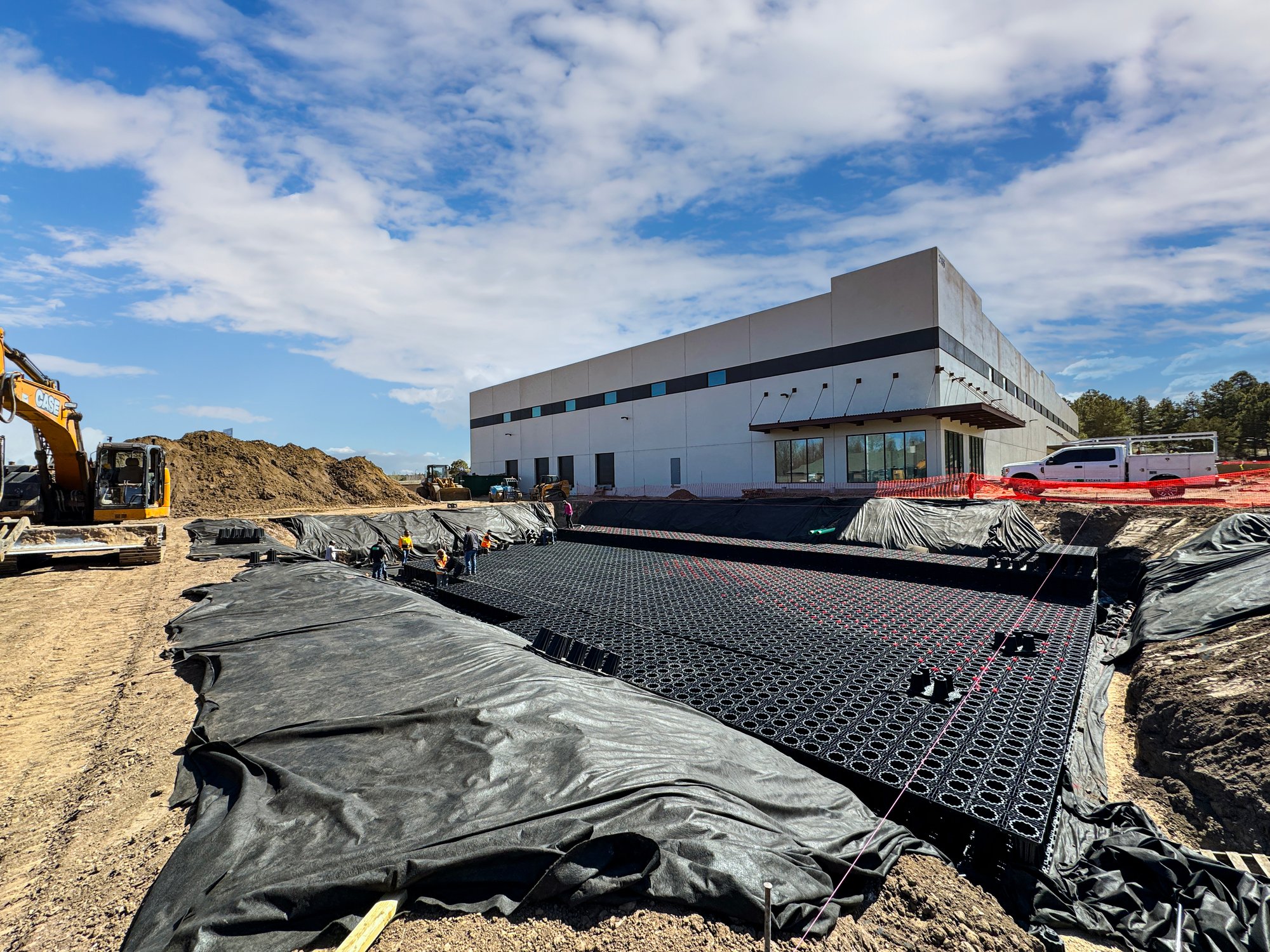

Mygrant Glass
Flagstaff, AZ
StormBrixx 600 HD
